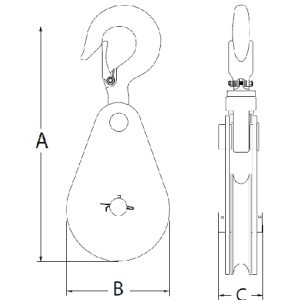

| CODE | WLL | SHEAVE DIAM (mm) | FIBRE ROPE (mm) | WIRE ROPE (mm) | DIMENSIONS (mm) |
||
|---|---|---|---|---|---|---|---|
| A | B | C | |||||
| 386001 | 250kg | 75 | 12 | 6 | 222.4 | 80 | 40 |
| 386003 | 500kg | 100 | 16 | 8 | 300.5 | 108 | 48.5 |
| 386004 | 1000kg | 125 | 20 | 10 | 346 | 140 | 53.5 |
| 386005 | 1500kg | 150 | 24 | 12 | 392 | 168 | 60 |
LIGHT DUTY SNATCH BLOCK (HOOK TYPE)
Manually operated Sheave Blocks are used for general hoisting use Hand Operated such as Shipping, Mining, General Engineering, Agriculture and domestic applications.
• Manufactured for ease of operation light weight, durable and compact in design.
• Swivel Hook type, single Sheave with rated capacities from 250kg to 1.5 tonne.
• Available in Fibre Rope and Wire Rope sheave blocks with 75mm to 150mm sheave diameters also fitted with bronze bush.
• Conforms to AS 2089, Test Certificate supplied.
