METALLING SOCKET - OPEN TYPE

METALLING SOCKET – OPEN TYPE

• Cast Alloy Steel
• Available for rope sizes 10mm to 70mm
• 100% Magnetic particle inspected in accordance with AS1171
• Ultrasonically tested in accordance with AS2574
• Manufactured in accordance with BS463 to meet the performance
requirements of AS1666 Wire Rope Slings
• Surface finish options include black self colour, galvanized and painted

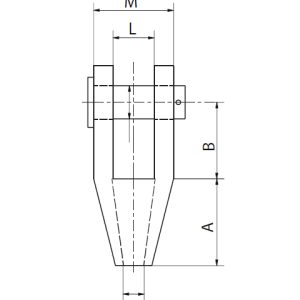

CODE	WIRE DIA (mm)	D (mm)	J (mm)	H (mm)	P (mm)	S (mm)	M (mm)	R (mm)	B (mm)	A (mm)	C (mm)	WLL (tonnes)	UOM	PACK QTY
526116	16	50	159	27	29	50	56	35	24	64	70	4.2	Each	Each
526120	20	64	175	33	33	62	70	38	29	67	76	7.5	Each	Each
526126	26	86	237	46	49	83	89	48	38	89	105	13.9	Each	Each
526128	28	92	262	50	57	92	94	50	41	102	114	14.8	Each	Each
526132	32	105	297	60	64	108	111	54	48	111	133	24.5	Each	Each
526142	36-42	127	330	67	70	127	135	65	57	114	152	33.8	Each	Each
526154	44-54	175	450	100	110	190	180	90	90	170	195	53.5	Each	Each
