| CODE | TYPE | WLL (tonnes) | DIMENSIONS (mm) | WEIGHT (kg) | ||
|---|---|---|---|---|---|---|
| a | b | t | ||||
| 2KW-CV06 | CV 06 | 0,90 | 47 | 10 | 81 | 0,18 |
| 2KW-CV08 | CV 08 | 1,55 | 70 | 12 | 94 | 0,38 |
| 2KW-CV10 | CV 10 | 2,45 | 80 | 15 | 120 | 0,71 |
| 2KW-CV13 | CV 13 | 3,85 | 91 | 20 | 150 | 1,18 |
| 2KW-CV16 | CV 16 | 5,00 | 100 | 21 | 175 | 2,30 |

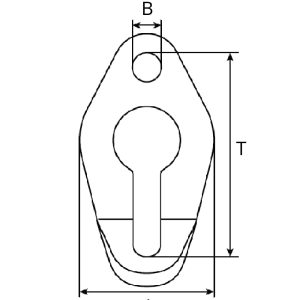

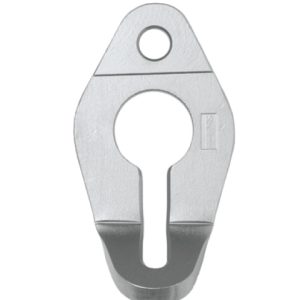

Shortener CV
Description
